Verti-Top® TB

Synthetic Turf

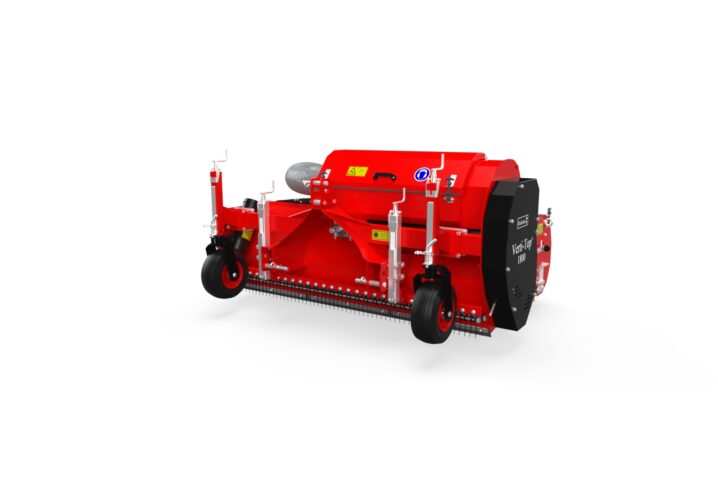

Verti-Top® TB

The Verti-Top Tow Behind works on the same principal as the bigger Verti-Top series but utilises a 6.5 hp engine. This allows the machine to be towed by any vehicle without the requirement of a PTO to drive the machine.

Specifications

Sku:147.150.010
Engine:B&S 6.5 HP
Operation:By towing hook
Working width m:1.45 m
Working width inch:59 inch
Max working depth mm:0 - 26 mm
Max working depth inch:0 - 1.02 inch
Hopper capacity:35 Ltr. m³
Hopper capacity ft3:2 x 1236 FT3
Max working speed kmh:12 km/h
Max working speed mh:7.5 m/h
Weight kg:320 kg
Weight lbs:706 lbs
Sieve size mm:5 x 5 mm
Sieve size inch:0.2 x 0.2 inch
Min tractor hp required:18 HP
Max capacity m2hr:17376 m²/hr
Max capacity ft2hr:128151 ft2/hr
Dimensions mm:1400 x 1700 x 1000 mm
Dimensions inch:55 x 67 x 39 inch

Standard components

Jigging sieve, adjustable according to cleaning level
Depth adjustment by means of spindles
Electric coupling including a switch and 7-pole electrical connection
Towing hook
Removable dirt receiving bin
Toolbox with combi tool and manual

Options

Sieve elements with various drainage dimenisons
